Key Features
Modular Fully
Form Factor ATX
Power W 850 Watts
Certifications 80 Plus Gold
Specification | |
|---|---|
| Model | RPS0147 |
| Part Number | CP-9020249/75-005036 |
| Wattage | 850 Watts |
| Form Factor | ATX |
| Efficiency | 80 PLUS Gold, Cybenetics Platinum |
| AC Input | 100V–240V AC |
| Input Current | 10A–5A |
| Frequency | 47~63 Hz |
| +12V Rail | 70.8A / 850W |
| +3.3V/+5V Rails | 20A each / 150W combined |
| -12V Rail | 0.3A / 3.6W |
| +5Vsb | 3A / 15W |
| PATA Connectors | 4 |
| EPS Connectors | 2 (8-pin) |
| SATA Connectors | 7 |
| PCIe Connectors | 3 (8-pin) |
| ATX Connector | 1 (24-pin) |
| Modular | Fully Modular |
| Cable Type | Type 4 |
| Cooling | 120mm Rifle Bearing Fan (Zero RPM Mode) |
| Modern Standby | Yes |
| Dimensions (LxWxH, mm) | 140 × 150 × 86 |
| Weight | 2.49kg |
| ATX12V Version | 2.53 |
| MTBF | 100,000 hours |

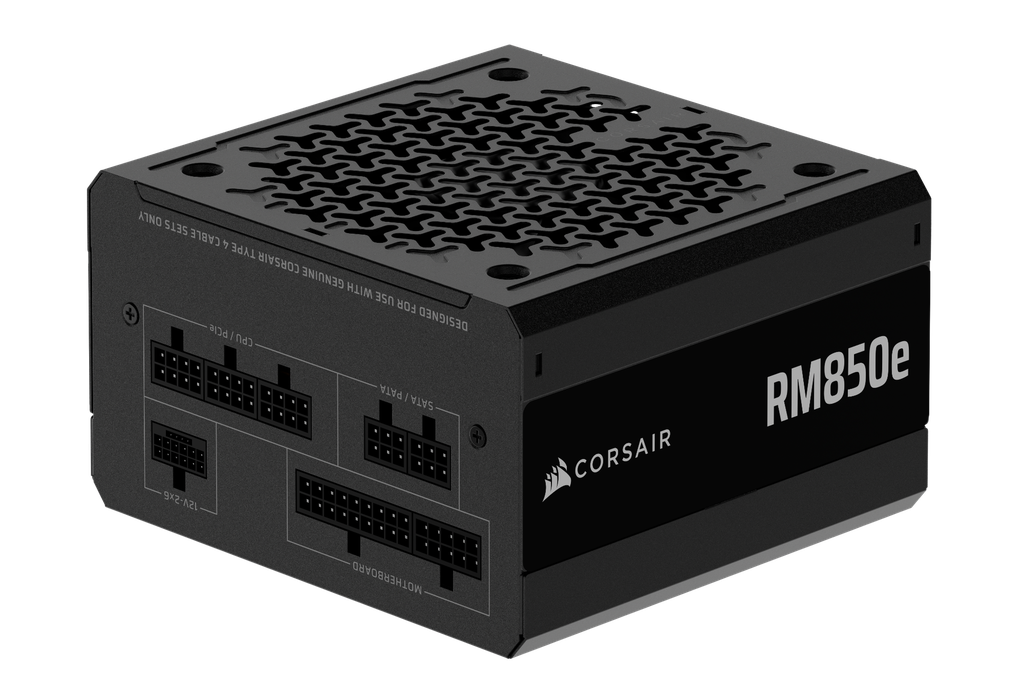

CORSAIR RMe Series Fully Modular Low-Noise Power Supplies Provide Quiet, Reliable Power With 80 PLUS Gold Efficiency To Your PC. With Dual 8-Pin EPS12V Cables And An Array Of PCIe 8-Pin Power Connectors, RMe PSUs Have The Connections Needed To Power Today's Demanding PC Hardware. Industrial-Grade, 105°C-Rated Capacitors Deliver Superb Electrical Performance, Backed By A Seven-Year Warranty. Wake Your Computer Faster And Consume Less Power With Support For The New Modern Standby Sleep Mode. Fully Modular Cables Make PC Builds Easy, As You Connect Only The Cables Your System Requires. With A 140mm-Long Casing That Works With Nearly Any Modern Case, The CORSAIR RMe Series Is Steady Power For Your System.
Keep Cable Clutter Down By Connecting Only The Cables Your System Needs And Nothing Else. Five Universal 8-Pin Connectors Can Be Used With Any 8-Pin Cable, Satisfying All The Power Needs Of Modern Motherboards And GPUs.
| Brands | Corsair |
