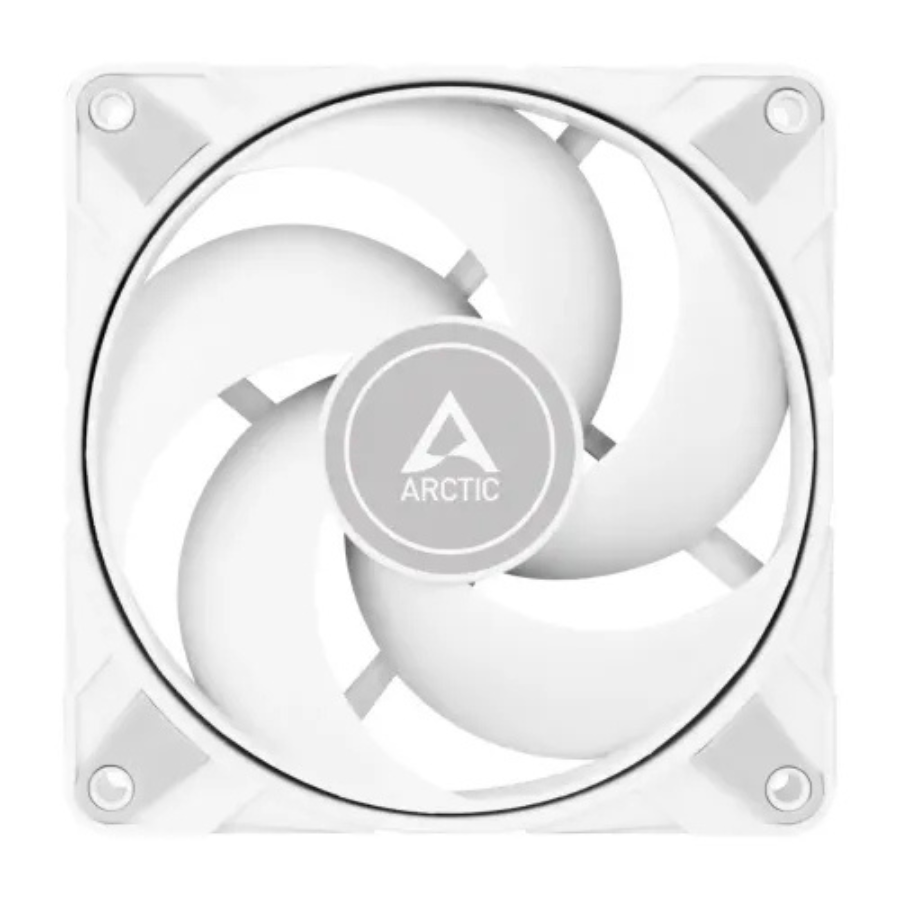

Arctic P12 Max 120mm Casing Fan White

The Arctic P12 Max 120mm Single Casing Cooling Fan White is intended for best cooling efficiency and silent operation. It features a wide fan speed range of 200 to 3300 rpm, which is controlled by PWM, allowing for precise modifications based on thermal requirements. Surprisingly, it can achieve 0 rpm when the PWM signal is less than 5%, ensuring total silence even in low-load scenarios. This fan produces a high maximum airflow of 81.04 cfm (137.69 m³/h). Its high static pressure rating of 4.35 mmH2O makes it particularly successful at overcoming resistance, making it ideal for usage in situations requiring air to be driven through tiny spaces or thick radiators. Despite its powerful performance, the Arctic P12 Max has a low noise output of only 0.6 sone, thanks to its smart design and fluid. dynamic bearing, which improves its longevity and reliability. The fan operates at a standard power of 12 V DC and requires a beginning voltage of 3.9 V DC, using 0.29 A of electricity when running. The fan comes with a 400 mm chord, allowing for a choice of installation options within a PC chassis. It connects via a 4-Pin PWM connection, guaranteeing full compatibility with modern motherboards and fan controllers. The Arctic P12 Max 120mm Single Casing Cooling Fan's combination of performance, efficiency, and low noise makes it an excellent choice for both enthusiasts and frequent users seeking superior cooling solutions.

Virtually Silent due to Fluid Dynamic Bearing

The P12 Max also has ARCTIC's tried and proven Hydrodynamic Bearing. This enables for practically silent operation at low speeds, as customers have asked. At high speeds, raw performance remains ensured. Although these bearings tend to wear out, ARCTIC does not sacrifice durability and continues to provide a 6-year warranty.

Extremely Wide Speed Range

The P12 Max has adjustable speeds from 200 to 3300 rpm. This enables silent operation in low-airflow environments, as well as superior performance on heatsinks and radiator. The P12 Max considerably improves on typical air and water cooling technologies.

Maximum Performance - Without Compromises

The P12 Max provides targeted airflow and high static pressure, making it suited for every setting. The fan is ideal for use with radiators, heat sinks, pinholes, and mesh. As a result, the P12 Max is the ideal fan for enthusiasts and professionals seeking high performance and a long service life.

0dB Mode - Zero RPM

The fan speed may be decreased to a standstill using PWM. This allows for silent operation in IDLE while maintaining maximum performance when necessary. Thus, the P12 Max allows for astoundingly dynamic speed modification, guaranteeing that airflow is adequately managed in any situation.

Maximum Smoothness, Minimum Vibration

Because of sinus magnetization, the new motor of P12 Max produces only around 5% of the vibration during commutation of a standard DC motor without a filter. The rubber pads positioned at the corners help to absorb the remaining vibrations created by the greater revolutions.

​
