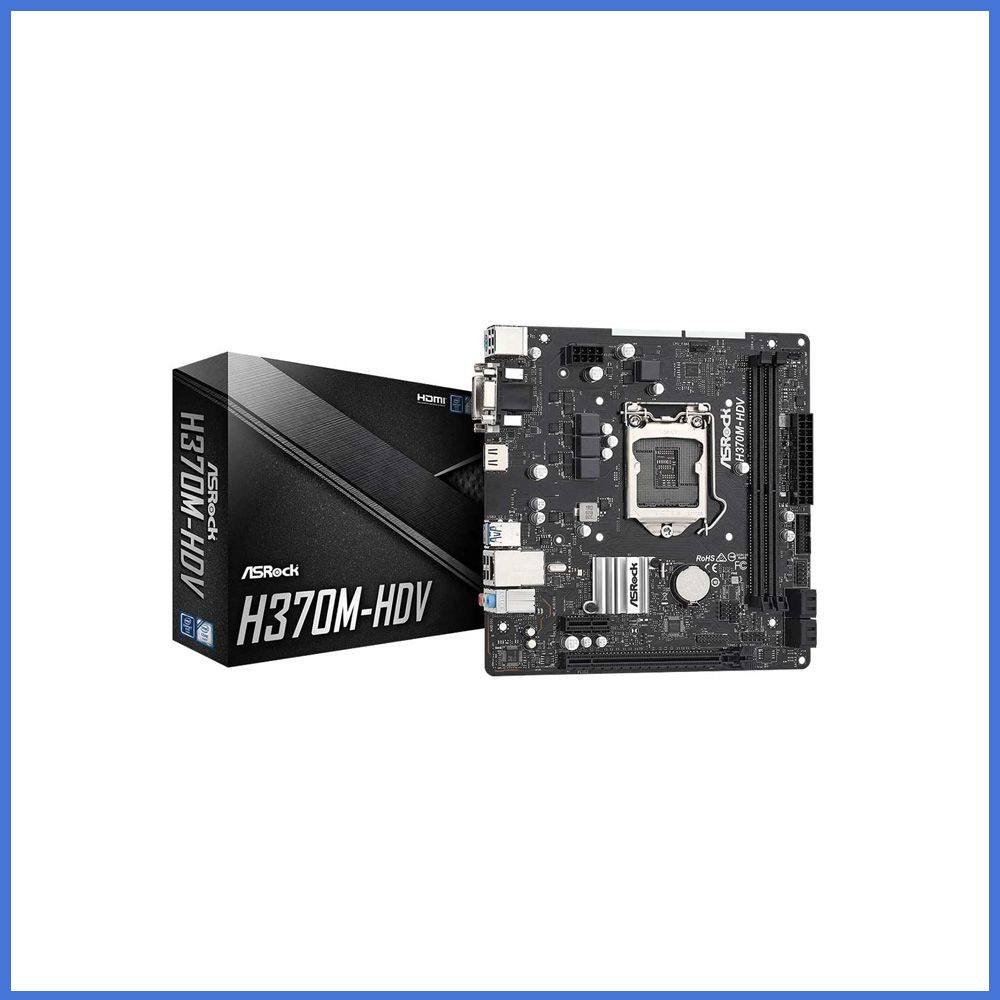

ASRock H370M-HDV Motherboard

http://www.daffodil-bd.com/web/image/product.template/5523/image_1920?unique=937990b
(0 review)

Key Features
Model: H370M-HDV
Supports 9th and 8th Gen Intel Core Processors
Up to 2666 MHz RAM
4 Power Phase design
Intel Turbo Boost 2.0

0.00 ৳ 0.0 BDT 6,500.00 ৳ VAT Excluded

6,500.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT015
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPUSupports 9th and 8th Gen Intel Core Processors (Socket 1151)
    Supports CPU up to 95W
    4 Power Phase design
    Supports Intel Turbo Boost 2.0 Technology
    ChipsetIntel H370
    BIOS128Mb AMI UEFI Legal BIOS with multilingual GUI support
    ACPI 6.0 Compliant wake up events
    SMBIOS 2.7 Support
    DRAM, PCH 1.05V Voltage Multi-adjustment
    Form FactorMicro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
    Solid Capacitor design
    Audio7.1 CH HD Audio (Realtek 887/897 Audio Codec)
    Supports Surge Protection
    Expansion Slots
    PCI1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
    1 x PCI Express 3.0 x1 Slot
    Memory
    TypeDDR4
    Slots2 x DIMM Slots
    Supported MemoryDDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
    Dual Channel DDR4 Memory Technology
    Maximum Memory64GB
    Graphics
    GraphicsSupports Intel UHD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
    DirectX 12
    HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
    - Three graphics output options: D-Sub, DVI-D and HDMI
    Supports Triple Monitor
    Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
    Connector & Ports
    HDMI1 x HDMI Port (HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz)
    D-Sub (s)1 x D-Sub Port
    DVI-D (s)1 x DVI-D Port
    USB (s)1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    LAN Port (s)PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    1 x Realtek RTL8111H
    Supports Wake-On-LAN
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE
    Supported Storage4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug
    Audio1 x Front Panel Audio Connector
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Ports- 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x DVI-D Port
    - 1 x HDMI Port
    - 4 x USB 2.0 Ports (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Ports
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    TPM (Trusted Platform Module )- 1 x TPM Header
    Warranty Information
    Manufacturing Warranty03 years warranty

    Description

    ASRock H370M-HDV 8th and 9th Gen Micro ATX Motherboard

    ASRock H310CM-HDV Motherboard is compatible with 9th and 8th Gen Intel Core Processors (Socket 1151). It supports DDR4 2666. Graphics Output Options are DVI-D, D-Sub, and HDMI. 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps. 4 SATA3. 4 USB 3.1 Gen1 (2 Front, 2 Rear). It has Full Spike Protection.

    ASRock Super Alloy

    This motherboard has a High-Density Glass Fabric PCB design which lessens the density of the gap in between the PCB layers to protect the motherboard from short circuits happening because of humidity. Sapphire Black PCB makes it eye-catching. It has been used for the safety and durability of the motherboard.

    Faster Data Transmission

    ASRock H370M-HDV Motherboard has 4 x USB3.2 onboard which can deliver data transfer 10x faster than USB 2.0. USB 3.2 Gen1 technology has upgraded the data transfer rate up to 5GB/s. It has become more efficient and faster. Asrock is using this technology for a stunning data transfer rate. It saves time and improves productivity.

    3 Graphics Outputs

    ASRock H370M-HDV Motherboard has all three types of most used graphics output connectors. It supports D-Sub, DVI-D, and HDMI combo. It also has an HDMI port which supports 4k resolution. It may need the help of integrated graphics though. With that, it will deliver the most stunning graphic quality. It comes with a 10-bit HEVC Decoding/Encoding which provides better video quality and a higher bit-depth video experience.
