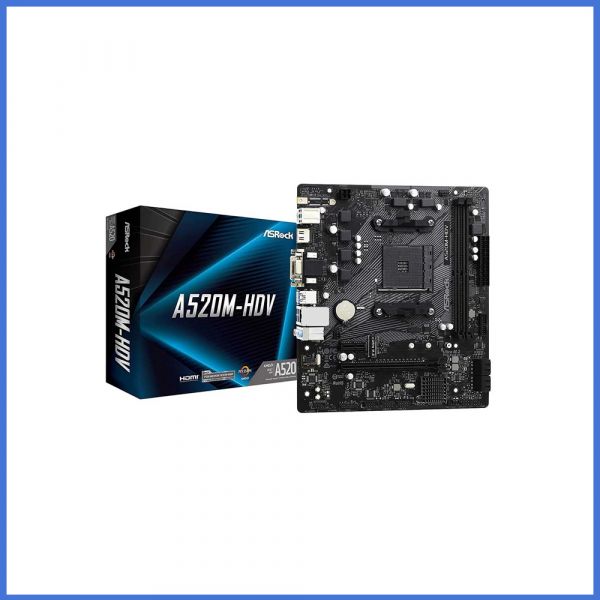

ASRock A520M-HDV ATX AM4 Motherboard

http://www.daffodil-bd.com/web/image/product.template/5521/image_1920?unique=a633b03
(0 review)


Brand: ASRock
Model: ASRock A520M-HDV
AMD AM4 socket: Ready for 3rd Gen AMD Ryzen Processors
Ultrafast connectivity
Ultrafast connectivity
Comprehensive cooling

0.00 ৳ 0.0 BDT 11,600.00 ৳ VAT Excluded

11,600.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT013
    Category :
    Motherboard
    Share :
    Supported CPU

    Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors (3000 And 4000 Series Processors)
    6 Power Phase Design

    ChipsetAMD A520
    Supported MemoryAMD Ryzen Series CPUs (Matisse) Support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory AMD Ryzen Series APUs (Renoir) Support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory
    BIOS128Mb AMI UEFI Legal BIOS With GUI Support Supports "Plug And Play" ACPI 5.1 Compliance Wake Up Events Supports Jumperfree SMBIOS 2.3 Support CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-Adjustment
    RAM TypeDDR4
    FromFactorMicro ATX Form Factor: 9.0-In X 7.9-In, 23.0 Cm X 20.1 Cm Solid Capacitor Design
    Internal I/O Ports1 X COM Port Header 1 X Chassis Intrusion And Speaker Header 1 X CPU Fan Connector (4-Pin)* 2 X Chassis Fan Connectors (4-Pin) (Smart Fan Speed Control)** 1 X 24 Pin ATX Power Connector 1 X 4 Pin 12V Power Connector 1 X Front Panel Audio Connector 2 X USB 2.0 Headers (Support 4 USB 2.0 Ports) (Supports ESD Protection) 1 X USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 Ports) (Supports ESD Protection)
    Maximum Memory64GB
    Max Shared Memory16GB
    Audio7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection
    HDMI1 X HDMI
    LANPCIE X1 Gigabit LAN 10/100/1000 Mb/S Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE
    Graphics

    Integrated AMD Radeon Vega Series Graphics In Ryzen Series APU
    DirectX 12, Pixel Shader 5.0
    Shared Memory Default 2GB. Max Shared Memory Supports Up To 16GB.
    Three Graphics Output Options: D-Sub, DVI-D And HDMI
    Supports Triple Monitor
    Supports HDMI 2.1 With Max. Resolution Up To 4K X 2K (4096x2160) @ 60Hz
    Supports DVI-D With Max. Resolution Up To 1920x1200 @ 60Hz
    Supports D-Sub With Max. Resolution Up To 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), XvYCC And HBR (High Bit Rate Audio) With HDMI 2.1 Port (Compliant HDMI Monitor Is Required)
    Supports HDR (High Dynamic Range) With HDMI 2.1
    Supports HDCP 2.3 With DVI-D And HDMI 2.1 Ports
    Supports 4K Ultra HD (UHD) Playback With HDMI 2.1 Port
    Supports Microsoft PlayReady

    USB2 X USB 2.0 Ports (Supports ESD Protection) 4 X USB 3.2 Gen1 Ports (Supports ESD Protection)
    BrandAsrock


    ASRock A520M-HDV ATX AM4 Motherboard Best Price in Bangladesh

    Find ASRock A520M-HDV ATX AM4 Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get home delivery in Dhaka city or pickup from our showroom.

    Basic Information

    Supported CPUSupports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
    6 Power Phase design
    ChipsetAMD A520
    Form Factor Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
    Solid Capacitor design
    BIOS128Mb AMI UEFI Legal BIOS with GUI support
    Supports "Plug and Play"
    ACPI 5.1 compliance wake up events
    Supports jumperfree
    SMBIOS 2.3 support
    CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment

    Expansion Slots

    PCI1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
    1 x PCI Express 3.0 x1 Slot
    M.2 Socket1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

    Memory

    Type

    Dual Channel Memory Architecture

    Slots2 x DIMM slots
    Supported Memory AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
    Maximum Memory64GB

    Graphics

    GraphicsIntegrated AMD Radeon Vega Series Graphics in Ryzen Series APU
    DirectX 12, Pixel Shader 5.0
    Shared memory default 2GB. Max Shared memory supports up to 16GB.
    Three graphics output options: D-Sub, DVI-D and HDMI
    Supports Triple Monitor
    Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    Supports HDR (High Dynamic Range) with HDMI 2.1
    Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    Supports Microsoft PlayReady
    Max Shared Memory16GB

    Connector & Ports

    HDMI1 x HDMI
    DVI-D (s)1 x DVI-D
    USB (s)2 x USB 2.0 Ports (Supports ESD Protection)
    4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    LAN Port (s)PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    Realtek RTL8111H
    Supports Wake-On-LAN
    Supports Lightning/ESD Protection
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE
    Supported Storage4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
    1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
    Audio7.1 CH HD Audio (Realtek ALC887 Audio Codec)
    Supports Surge Protection
    Internal I/O Ports1 x COM Port Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)**
    1 x 24 pin ATX Power Connector
    1 x 4 pin 12V Power Connector
    1 x Front Panel Audio Connector
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    TPM (Trusted Platform Module )

    1 x SPI TPM Header

    Warranty Information

    Manufacturing Warranty03 Years Warranty

    Others

    Special FeaturesASRock Super Alloy
    Premium 50A Power Choke
    Sapphire Black PCB
    High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

    ASRock A520M-HDV ATX AM4 Motherboard

    The ASRock A520M-HDV ATX AM4 Motherboard has PCIe Gen3 x4 Ultra M.2 interface and pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
