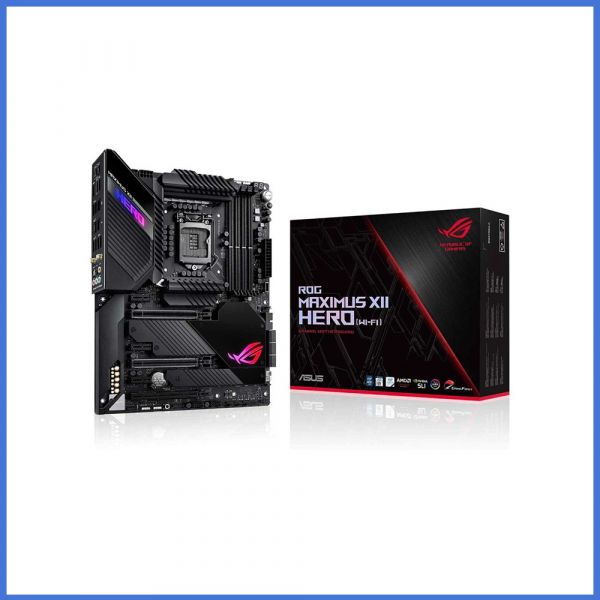

Asus ROG Maximus XII Hero Z490 Intel 10th Gen Wi-Fi ATX Motherboard

http://www.daffodil-bd.com/web/image/product.template/5520/image_1920?unique=59f8fd4
(0 review)

Key Features
Model: ROG Maximus XII Hero Z490 Wi-Fi
LGA 1200 socket for 10th-gen Intel Core desktop processors
Dedicated Water Cooling Zones
Automated System-Wide Tuning
Dual Ethernet and Gigabit Ethernet

0.00 ৳ 0.0 BDT 40,200.00 ৳ VAT Excluded

40,200.00 ৳ VAT Excluded

Not Available For Sale

    This combination does not exist.


    SKU :
    MOT012
    Category :
    Motherboard
    Share :

    Specification

    Basic Information
    Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    ChipsetIntel Z490
    BIOS256 Mb Flash ROM, UEFI AMI BIOS
    Form FactorATX Form Factor: 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm )
    Expansion Slots
    PCIIntel 10th Gen Processors
    2 x PCIe 3.0 x16 (x16 or dual x8)
    Intel Z490 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    3 x PCIe 3.0 x1
    M.2 SocketTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    Memory
    TypeDual Channel Memory Architecture
    Slots4 x DDR4 DIMM
    Supported Memory4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
    Supports Intel Extreme Memory Profile (XMP)
    OptiMem III
    Maximum Memory128 GB
    Graphics
    GraphicsIntegrated Graphics Processor
    1 x HDMI 1.4b
    Supports NVIDIA 2-Way SLI Technology
    Supports AMD 3-Way CrossFireX™ Technology
    Supports AMD 2-Way CrossFireX Technology
    Connector & Ports
    HDMI1 x HDMI 1.4b
    USB (s)Rear USB Port ( Total 10 )
    4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C)
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 7 )
    1 x USB 3.2 Gen 2 front panel connector port(s)
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
    LAN Port (s)Intel I219-V 1Gb Ethernet
    Marvell AQtion AQC111C 5Gb Ethernet
    ASUS LANGuard
    Supported StorageTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel Z490 Chipset :
    1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
    1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 5, 10
    Intel Optane Memory Ready
    AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220
    - Impedance sense for front and rear headphone outputs
    - Supports: Multi-streaming, Front Panel Jack-retasking, up to 24-bit/192kHz playback
    - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    - ESS™ ES9023 DAC + RC4580 OP AMP
    - Supports up to 32-Bit/192kHz playback
    Audio Feature :
    - SupremeFX Shielding Technology
    - Gold-plated jacks
    - Optical S/PDIF out port(s) at back panel
    - Premium Japanese audio capacitors
    - Audio Cover
    Internal I/O Ports1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    3 x Chassis Fan connector(s)
    1 x AIO_PUMP connector
    1 x H_AMP fan connector
    1 x W_PUMP+ connector
    1 x W_IN header
    1 x W_OUT header
    1 x W_FLOW header
    1 x AAFP connector
    2 x Aura RGB Strip Headers
    2 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1 front panel TypeC connector
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    3 x M.2 Socket 3
    6 x SATA 6Gb/s connector(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Thermal sensor connector(s)
    1 x ReTry button
    1 x System panel connector
    1 x Speaker connector
    1 x Start button
    1 x FlexKey button
    TPM (Trusted Platform Module )N/A
    Others
    Special FeaturesIntel Wi-Fi 6 AX201:
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
    Supports up to 2.4Gbps max data rate
    Supports dual band frequency 2.4/5 GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Supports CNVI interface

    [ROG Exclusive Software]
    - Mem Tweakit
    - RAMCache III
    - ROG CPU-Z
    - GameFirst VI
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS® Sound Unbound
    - Overwolf
    - BullGuard Internet Security (1-year full version)

    [ASUS Exclusive Software]
    Armoury Crate
    - Aura Creator
    - Aura Sync
    AI Suite 3
    - 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app
    - EZ update
    AI Charger
    WinRAR

    [UEFI BIOS]
    AI Overclocking Guide
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    FlexKey

    ROG Extreme OC kit
    - FlexKey button
    - ReTry button
    - Start button

    Extreme Engine Digi+
    - 10K Black Metallic Capacitors
    - MicroFine Alloy Choke

    ASUS Q-Design
    - ASUS Q-Code
    - ASUS Q-Connector
    - ASUS Q-DIMM
    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - ASUS Q-Slot

    ASUS Thermal Solution
    - Aluminum M.2 heatsink cover

    ASUS EZ DIY
    - BIOS Flashback™ button
    - Clear CMOS button
    - Procool II
    - Pre-mounted I/O shield
    - SafeSlot

    AURA Sync
    - Standard RGB headers
    - Addressable Gen 2 RGB headers
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Asus ROG Maximus XII Hero Z490 Intel 10th Gen Wi-Fi ATX Motherboard

    ROG Maximus XII Hero is the perfect foundation for the Republic of Gamers. It's a motherboard that packs substantial power, smart cooling, and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization. The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Hero takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience. Maintaining system stability is paramount under high load, so Maximus XII Hero employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large armor heatsinks also cover multiple M.2 slots. Featuring premium components and multiple fan headers, Maximus XII Hero is fully armed to provide the best foundation for gaming systems – enabling higher performance at lower temperatures. Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Maximus XII Hero features the most comprehensive cooling options ever. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI. Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop. Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Maximus XII Hero offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel 1Gb and Marvell 5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports Intel OptaneTM Memory technology to maximize the speed of your SSD for faster load times, and SupremeFX onboard audio provides superb sound while saving a PCIe slot. In addition to extraordinary performance, Maximus XII Hero provides extensive styling and customization options to let you build a system that truly stands apart.
