Price:
3,500.00 ৳

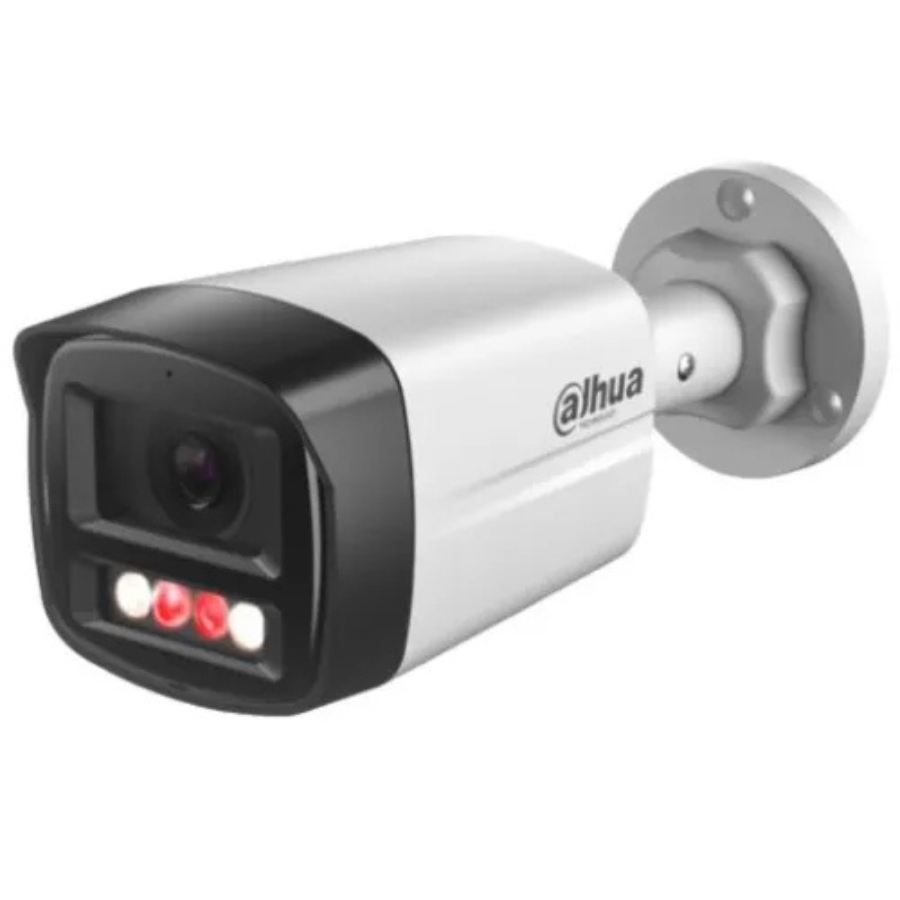

DAHUA DH-IPC-HFW1239TL1-A-IL 2MP SMART DUAL LIGHT BULLET IP CAMERA
Key Features
Model: DH-IPC-HFW1239TL1-A-IL
Image Sensor: 1/2.9" Progressive Scan CMOS
Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps
Lens: 2.8 mm;3.6 mm, Aperture: F1.6, IR Distance: 30 meters
Features: PoE, IP67, DWDR, 3D NR, Smart Detection, Built-in Microphone
Specification
Camera | |
| Image Sensor | 1/2.8" CMOS |
| Resolution | 1920 (H) × 1080 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Day & Night | Auto(ICR)/Color/B/W |
| Min. Illumination | 0.005 [email protected] (Color,30 IRE) 0.0005 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) |
| SNR (dB) | >56 dB |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Others | ROM: 128 MB RAM: 128 MB |
Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm;3.6 mm |
| Aperture | F1.6 |
| Field of View | 2.8 mm: H: 104°; V: 55°; D: 124° 3.6 mm: H: 88°; V: 44°; D: 105° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft) |
| DORI Distance | 2.8 mm: 44.1 m(144.69 ft), 17.7 m(58.07 ft), 8.8 m(28.87 ft), 4.4 m(14.44 ft) 3.6 mm: 58.9 m(193.24 ft), 23.6 m(77.43 ft), 11.8 m(38.71 ft), 5.9 m(19.36 ft) |
| Others | Human Detection: Support the classification and accurate detection of human Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Illuminator | |
| IR LEDs | 2 (IR LED); 2 (Warm light) |
| IR Distance | Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Control | Auto;Manual |
Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Resolution | 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Main Stream | 1920 × 1080@(1–25/30 fps) |
| Sub Stream | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Gain Control | Auto;Manual |
| Noise Reduction | 3D NR |
| Region of Interest (ROI) | Yes (4 areas) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Others | Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
Audio | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Built-in Microphone | Yes, built-in Mic |
Storage | |
| Network Storage | FTP |
Network | |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| Interoperability | ONVIF (Profile S; Profile T); CGI |
| API | Yes |
| User/Host | 6 (Total bandwidth: 24 M) |
| Client | iOS;Android |
Interface | |
| Network Interface | RJ-45 (10/100 Base-T) |
Alarm | |
| General Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception |
Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Water Protection | IP67 |
Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| PoE Standard | 802.3af |
| Power Consumption | Basic: 1.8 W (12 VDC); 2.3 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminatorintensity): 6.3 W (12 VDC); 7.8 W (PoE) |
Physical Information | |
| Casing Material | Metal+plastic |
| Dimension | 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00")(L × W × H) |
| Weight | Net Weight: 0.31 kg (0.68 lb) Gross Weight: 0.45 kg (0.99 lb) |
Warranty Information | |
| Warranty | 1 Year |
Description
Dahua DH-IPC-HFW1239TL1-A-IL 2MP Smart Dual Light Bullet IP Camera
The Dahua DH-IPC-HFW1239TL1-A-IL 2MP Smart Dual Light Bullet IP Camera is an advanced surveillance system with outstanding features to ensure peak performance. With a maximum resolution of 2 MP (1920 × 1080) at 25/30 frames per second, its 1/2.9" Progressive Scan CMOS image sensor guarantees excellent imagery, producing crisp and detailed film. This Dahua DH-IPC-HFW1239TL1-A-IL 2MP Smart Dual Light Bullet IP Camera has an integrated microphone and IR LED/warm light technology. It offers improved night vision capabilities with an IR distance of 30 meters and a warm light distance of 30 meters, guaranteeing dependable monitoring even in low light. With its PoE, IP67 waterproof rating, DWDR, and 3D NR features, the Dahua IP camera offers better image quality and adaptability to a range of climatic circumstances. To optimize bandwidth and storage utilization, it uses the H.265 codec for high compression rates and ultra-low bit rates. It also enhances security monitoring capabilities with support for smart detection features, including motion detection, audio detection, video tampering, and human detection. SMART H.264 +/H.265+ and ROI are two of the flexible coding options that allow it to adjust to a range of bandwidth and storage needs. The built-in microphone guarantees convenient installation and dependable performance in demanding outdoor settingThe built-in microphone guarantees convenient installation and dependable performance in demanding outdoor settings, 12 VDC/PoE power supply, and IP67 protection of The Dahua DH-IPC-HFW1239TL1-A-IL 2MP Smart Dual Light Bullet IP Camera. All things considered, the Dahua 2MP Bullet IP Camera provides cutting-edge surveillance features appropriate for a variety of monitoring applications. Smart algorithms are used by Dahua Smart Dual Light technology to identify targets. The infrared illuminator is often turned on at night; when a target enters the monitoring area, the white light turns on and the camera records full-color footage along with important event details. In other words, the camera connects a full-color image to a snapshot and a video. Light pollution is effectively reduced when the IR illuminator is turned on and the white light is turned off when the target leaves the monitoring area.
| Brands | Dahua |
