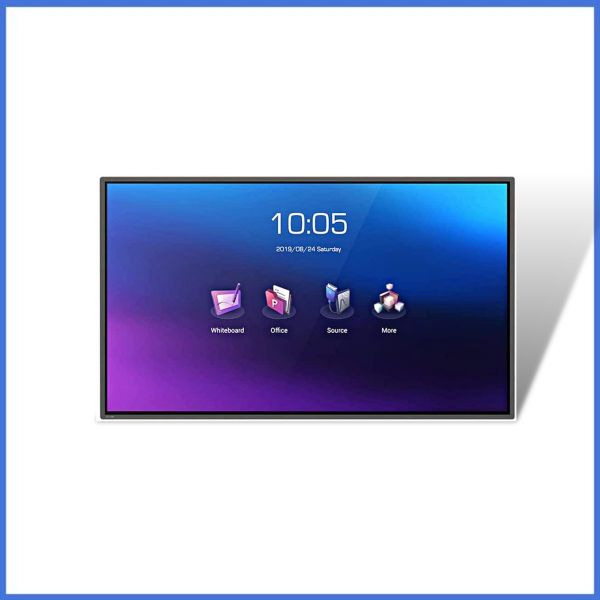

Horion 75M5APro All in one Interactive Flat Panel
Brand: Horion
Model: 75M5APro
Display: 74.53" inch, 4K UI
Contrast ratio:100000:1
CPU Architecture:ARM A73
CPU Working Frequency:1.8GHz
Ram: 8GB DDR4
Storage: 64GB
OS: Android 11.0
Camera: 13M Pixel Camera
Screen Share: NFC Screen Mirroring
Multi-touch: Windows 7/8/10, Android, Linux
Single-touch: Windows XP, Mac OS X, Chrome
OPS: Processor: Intel® Core I7 10700 Processor 2.9GHz, Ram- 16GB, SSD- 512GB
To Know More: 01792093170
Specification overview
|
Display |
|
|
Model |
75M5APro |
|
Size |
74.5" |
|
Backlight type |
D-LED |
|
Display type |
IPS |
|
Resolution |
3840*2160 |
|
Brightness |
400cd/m²
|
|
Contrast ratio |
100,000:1 |
|
Touch points |
20 touch |
|
Response time |
8ms |
|
Pixel pitch |
0.372mm*0.372mm
|
|
Refreshing frequency |
60Hz |
|
Viewing angle |
178°(H) / 178°(V) |
|
Color gamut (x% NTSC) |
72% |
|
View area |
1428.48mm*803.52mm
|
|
Display colors |
1.07B(10bit) |
|
Life time |
50,000 hrs |
|
System |
|
|
Solution |
MT9950 |
|
Operation system |
Android 11.0 |
|
CPU Architecture |
ARM A73 |
|
CPU Working Frequency |
1.8GHz |
|
CPU Core |
Quad Core |
|
GPU |
Mali-G52 |
|
RAM |
8GB |
|
ROM |
64GB |
|
Power |
|
|
Voltage |
100 V ~ 240 V/AC, 50/60 Hz |
|
Power consumption without OPS |
220W
|
|
OPS Power |
18V(DC)/5A |
|
Power consumption in standby mode |
<0.5W |
|
Power AC input |
*1 |
|
Camera |
|
|
Pixel |
13M |
|
FOV |
DIAGONAL 85.4±3° |
|
Focus form |
Fixed focus |
|
Array Mic |
|
|
MIC Category |
8pcs omnidirectional silicon wheat |
|
Pick-up Distance |
8m |
|
Pick-up Angle |
180° |
|
Function |
|
|
Audio Output Power |
15W * 2 |
|
WIFI |
Support |
|
NFC |
Support |
|
Bluetooth |
Support Bluetooth5.0 |
|
Interface |
|
|
HDMI-IN |
*2 |
|
DP-IN |
*1 |
|
VGA-IN |
*1 |
|
Audio-IN |
*1 |
|
USB 2.0 |
*1 |
|
USB 3.0 |
*4 |
|
Touch-USB |
*1 |
|
MIC-IN |
*1 |
|
SPDIF-OUT |
*1 |
|
HDMI-OUT |
*1 |
|
Audio-OUT |
*1 |
|
Type-C |
*1 |
|
RS232 In |
*1 |
|
Environment |
|
|
Working Temperature |
0℃ ~ 40℃ |
|
Storage Temperature |
-10℃ ~ 60℃ |
|
Working Humidity |
20% ~ 80% |
|
Storage Humidity |
10% ~ 80% |
|
Work Altitude |
≤5000m |
|
The longest service time (Hour*Day) |
18Hours*7days |
|
Structure |
|
|
Net Weight |
50kg±1.5kg |
|
Gross Weight |
65kg±1.5kg |
|
Product Size W*D*H） |
1722.41mm*87.08mm*1022.15mm |
|
Package Size W*D*H） |
1900mm*225mm*1125mm |
|
VESA |
4*M8 Screw Hole 600mm*400mm |
|
Housing Material Surface Frame /Back Cover） |
Aluminum/Sheet Metal |
|
Housing Color Surface Frame /Back Cover） |
Gray (White)/Black |
|
Accessories |
|
|
Pen |
*2 |
|
Remote Control |
*1 |
|
Expansion Screw |
*8 |
|
User Manual |
*1 |
|
Certificate of quality/Warranty card |
*1 |
|
HDMI Cable |
*1 |
|
Touch Cable |
*1 |
|
Power Cable |
*1 |
