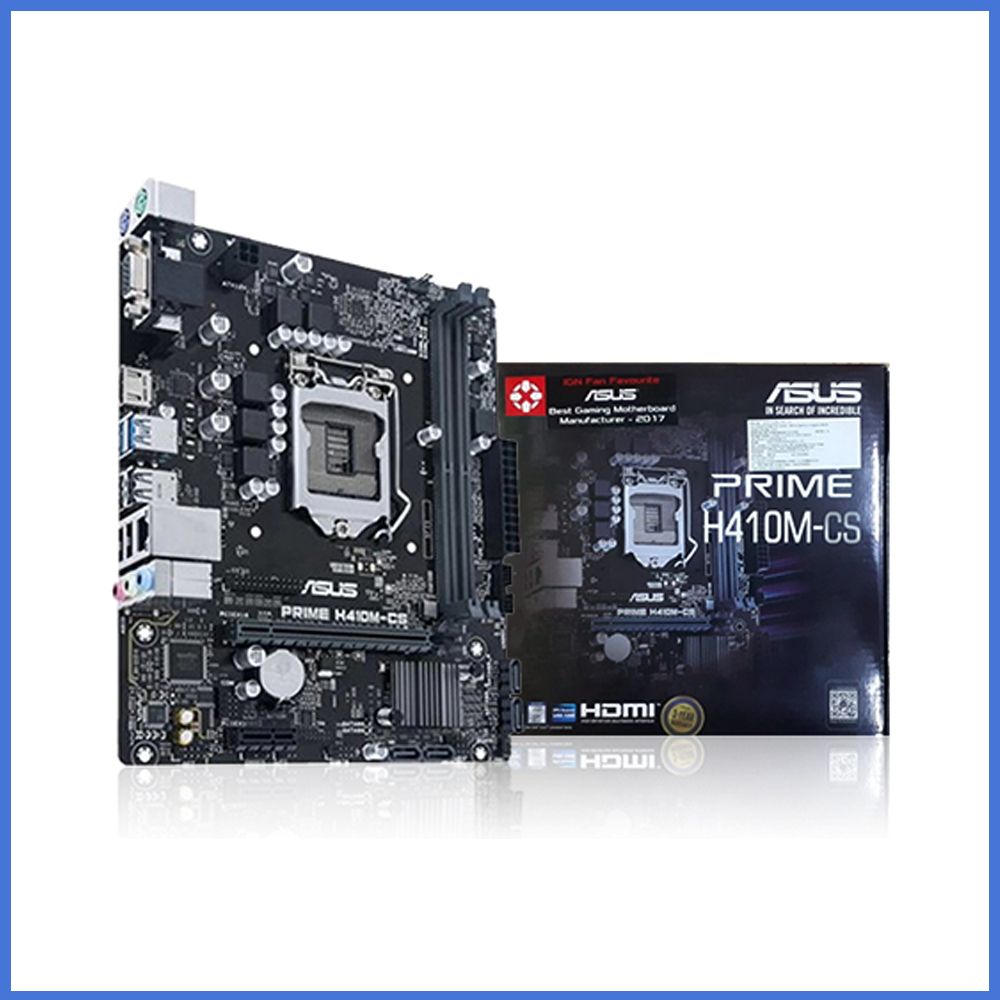

Asus Prime H410M-CS Micro ATX Motherboard
Brand: Asus
Model: Asus Prime H410M-CS
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
CHIPSET: Intel H410
LAN: Realtek RTL8111H
MEMORY: 2 x DIMM slots with Max. 64GB
Tags :
Specification
| Basic Information | |
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel H410 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | mATX Form Factor: 8.9 inch x 8.0 inch |
| Expansion Slots | |
| PCI | No |
| M.2 Socket | No |
| Memory | |
| Type | Non-ECC, Un-buffered Memory |
| Slots | 2 x DIMM |
| Supported Memory | 10th Gen Intel Core i9/i7 CPUs support: 2933/ 2800/ 2666/ 2400/ 2133 Intel Core i5/i3/Pentium/Celeron processors: 2933/ 2800/ 2666/ 2400/ 2133 MHz Supports Intel Extreme Memory Profile (XMP) OptiMem |
| Maximum Memory | 64GB |
| Graphics | |
| Graphics | Integrated Graphics Processor 1 x D-Sub 1 x HDMI 1.4b |
| Connector & Ports | |
| HDMI | 1 x HDMI 1.4b |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | Rear USB Port ( Total 4 ) 2 x USB 3.2 Gen 1 port(s)(2 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN Port (s) | Realtek RTL8111H |
| Supported Storage | Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports Intel® H410 Chipset : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 4 x SATA 6Gb/s port(s) |
| Audio | Realtek ALC887 7.1-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
| Brands | Asus |
