Price:
9,600.00 ৳

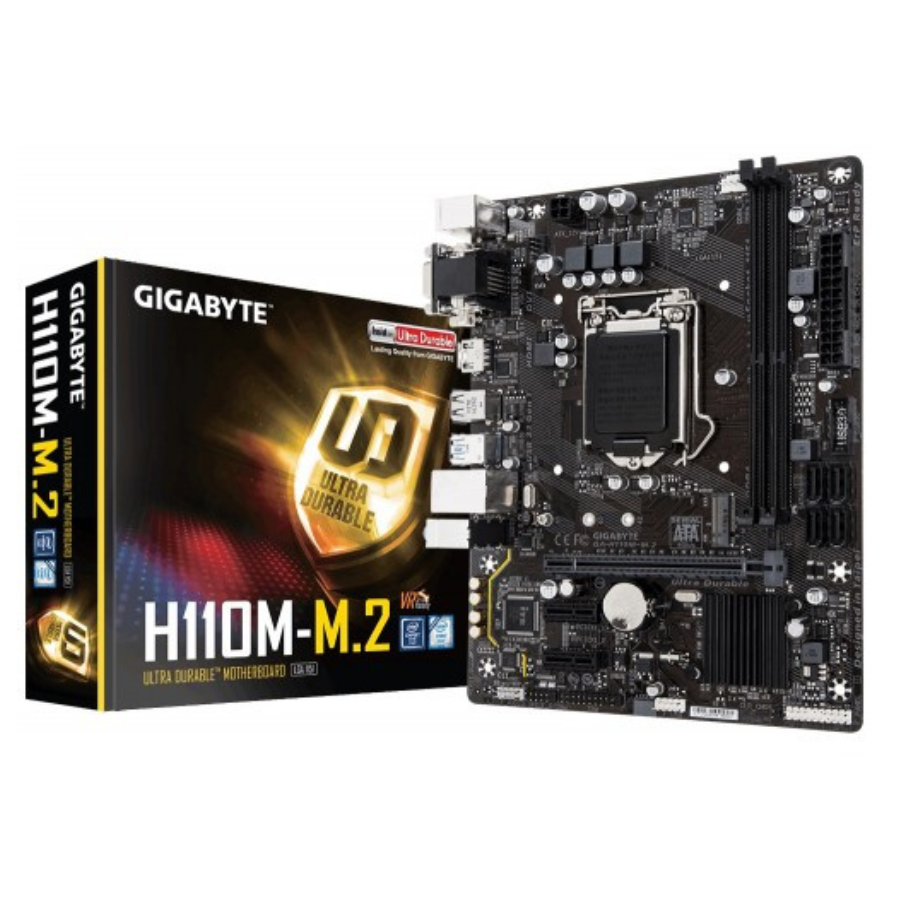

GIGABYTE INTEL H110M M.2 DDR4 MOTHERBOARD
Key Features
Model: Gigabyte GA-H110M-M.2 DDR4
7th/6th Gen Intel® Core Processors
Dual Channel DDR4, 2 DIMMs
HDMI 1.4, DVI-D, D-sub
Ultra-Fast M.2
Specification
Basic Information | |
| Supported CPU | Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package |
| Chipset | Intel® H110 Express Chips |
| BIOS | 1 x 64 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
Expansion Slots | |
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
| M.2 Socket | 1 x M.2 Socket 3 connector |
Memory | |
| Type | 2 x DDR4 DIMM |
| Slots | Dual channel memory architecture |
| Supported Memory | Support for DDR4 2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | 32 GB |
Graphics | |
| Graphics | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz * Support for HDMI 1.4 version. |
| Max Shared Memory | 512 MB |
Connector & Ports | |
| HDMI | 1 x HDMI port |
| D-Sub (s) | 1 x D-Sub port |
| DVI-D (s) | 1 x DVI-D port |
| USB (s) | 4 x USB 3.1 Gen 1 ports 6 x USB 2.0/1.1 ports |
| LAN Port (s) | Intel® GbE LAN chip (10/100/1000 Mbit) |
| Supported Storage | 1 x M.2 connector 4 x SATA 6Gb/s connectors |
| Audio | 1 x front panel audio header 3 x audio jacks (Line In, Line Out, Mic In) |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Trusted Platform Module (TPM) header 1 x Clear CMOS jumper |
Warranty Information | |
| Manufacturing Warranty | 02 years |
Description
Gigabyte GA-H110M-M.2 DDR4 Supports 7th / 6th Generation Intel® Core Processors.It offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.Intel® Gbe LAN features cFosSpeed helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments. This motherboard delivers high-quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions 4K resolution is the next technological milestone in high-definition content delivery, utilising approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI. GIGABYTE APP Centre gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Centre allows you to launch all GIGABYTE APPs installed on your system.With 6th Generation Intel® Core™ Processor, Security and Productivity Solution with built-in IT.New compelling usages in one intuitive Customisation UI. GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smartphones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users that legacy USB 2.0 devices will still work.GIGABYTE motherboards use Low RDS(on) MOSFETs, which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings, which are beneficial for both end-users and the environment without impacting system performance. All new GIGABYTE APP Centre, simple and easy use and support Intel® Small Business Basics
| Brands | Gigabyte |
